WKP102MCPEJ0KR單層陶瓷電容器Vishay
發布時間：2024-04-30 09:23:10 瀏覽：815
WKP102MCPEJ0KR是Vishay生產的單層陶瓷電容器，適用于需要控制功率輸入并提供更低成本組件的電路設計。該電容器能夠承受760VAC|500VAC的電壓，并在最高工作溫度為125°C的環境下正常工作。此款高頻電容器采用徑向端接方式，深度為6mm(最大)，公差為20%，電容值為0.001uF。其引線直徑為0.8mm，間距為12.5mm。
具體特征包括：
- 電容器由兩面鍍銀的陶瓷盤組成
- 連接引線由直徑為0.6毫米或0.8毫米的鍍錫銅制成
- 電容器可提供直線或扭結引線，引線間距為10.0mm或12.5mm
- 涂層采用符合UL 94 V-0標準的藍色阻燃環氧樹脂
電容范圍：33pf ~ 4.7 nF
電容公差：±10%，±20%
額定電壓
?X1: 760 VAC, 50 Hz (IEC 60384-14)
760 VAC, 50 Hz / 60 Hz (US/UL/CSA 60384-14)
?Y1: 500 VAC, 50 Hz (IEC 60384-14)
500vac, 50hz / 60hz (US/UL/CSA 60384-14)
測試電壓
?4000vac, 50hz, 2s組件測試(100%)
?4000 VAC, 50 Hz, 60 s隨機抽樣測試(破壞性)
?4000vac, 50hz, 60s耐壓涂層(破壞性)
500vdc時的絕緣電阻：≥10000 MΩ(60秒)
耗散因子
第一類:最大0.5% (1khz)
第二類:最大2.5% (1khz)
此外，WKP102MCPEJ0KR陶瓷電容器符合IEC 60384-14標準，具有高可靠性，并提供多種不同的引線樣式。
該電容器的應用包括符合IEC 60384-14標準的X1、Y1類型應用，以及線對線濾波(X類)和線對地濾波(Y類)。
其他WKP系列產品型號：
WKP472KCPERYKR | WKP222MCPTH0KR | WKP102MCPEB0KR | WKP221MCPED0KR |
WKP101MCPDF0KR | WKP222MCPDH0KR | WKP681MCPEJ0KR | WKP680MCPDF0KR |
WKP152MCPTH0KR | WKP330MCPDRUKR | WKP332MCPEH0KR | WKP152MCPQG0KR |
WKP102MCPED0KR | WKP152KCPTDRKR | WKP332MCPERTKR | WKP221MCPDF0KR |
WKP330MCPEF0KR | WKP472MCPTH0KR | WKP221KCPED0KR | WKP221KCPERUKR |
WKP332MCPED0KR | WKP472MCPEJ0KR | WKP471MCPERUKR | WKP331MCPERUKR |
WKP221KCPEF0KR | WKP392MCPEJ0KR | WKP101MCPDD0KR | WKP472MCPDJ0KR |
WKP471MCPDD0KR | WKP222MCPDF0KR | WKP470MCPDRUKR | WKP472MCPEF0KR |
WKP222MCPTG0KR | WKP222KCPTH0KR | WKP471MCPED0KR | WKP392MCPEH0KR |
WKP102MCPEJ0KR | WKP101MCPERUKR | WKP221MCPERYKR | WKP331KCPEF0KR |
WKP102KCPEF0KR | WKP102MCPEJGKR | WKP471MCPDRUKR | WKP331MCPERZKR |
WKP101MCPERYKR | WKP101MCPEF0KR | WKP472MCPDRUKR | WKP331KCPDD0KR |
WKP681MCPEF0KR | WKP102MCPERZKR | WKP332MCPDJ0KR | WKP101MCPDRUKR |
WKP152MCPEJ0KR | WKP222MCPERUKR | WKP222KCPYH0KR | WKP332MCPEJ0KR |
WKP102MCPDRTKR | WKP221MCPERZKR | WKP222MCPERYKR | WKP102MCPDJ0KR |
WKP102MCPERUKR | WKP470MCPEF0KR | WKP221KCPDD0KR | WKP151KCPEF0KR |
WKP102MCPDF0KR | WKP221MCPEF0KR | WKP331MCPDF0KR | WKP222MCPYH0KR |
WKP102MCPEF0KR | WKP471MCPEF0KR | WKP472MCPERTKR | WKP332MCPERUKR |
WKP330KCPTDRKR | WKP222MCPEJ0KR | WKP472KCPEB0KR | WKP152MCPERUKR |
WKP102MCPDRUKR | WKP471MCPERZKR | WKP151KCPTDRKR | WKP151MCPERUKR |
WKP681MCPERUKR | WKP472MCPERUKR | WKP151MCPEB0KR | WKP680MCPEF0KR |
WKP330MCPERUKR | WKP472MCPEFGKR | WKP101KCPED0KR | WKP331KCPTDRKR |
WKP472MCPEH0KR | WKP152MCPEH0KR | WKP681KCPDJ0KR | WKP222MCPEH0KR |
WKP222MCPEF0KR | WKP102MCPEH0KR | WKP152MCPERYKR | WKP222KCPEF0KR |
WKP222MCPDRUKR | WKP222KCPQH0KR | WKP151MCPEF0KR | WKP102MCPTH0KR |
WKP101KCPEF0KR | WKP331MCPQG0KR | WKP472MCPDF0KR | WKP471MCPDF0KR |
WKP680KCPDF0KR | WKP330MCPDF0KR | WKP222MCPDJ0KR | WKP472KCPEFGKR |
WKP331MCPEF0KR | WKP102MCPERYKR | WKP222MCPTERKR | WKP222KCPERZKR |
WKP331MCPTE0KR | WKP681KCPEJ0KR | WKP102MCPERTKR | WKP470MCPED0KR |
WKP470MCPERYKR | WKP681MCPDF0KR | WKP102KCPED0KR | WKP471MCPEFGKR |
WKP221MCPERUKR | WKP681MCPERZKR | WKP152KCPDJ0KR | WKP331MCPDRUKR |
WKP221MCPEFGKR | WKP221MCPDRUKR | ERP470MCPED0KR | WKP102MCPYREKR |
WKP472MCPYREKR | WKP472KCPEJ0KR | WKP392MCPERZKR | WKP222KCPED0KR |
WKP472MCPQH0KR | WKP472MCPERZKR | WKP101MCPED0KR | WKP332MCPDF0KR |
WKP472MCPED0KR | WKP472MCPERYKR | WKP151MCPDF0KR | WKP222KCPERUKR |
WKP472MCPDD0KR | WKP470MCPEH0KR | WKP470MCPERZKR | WKP681MCPQG0KR |
WKP332MCPEF0KR | WKP331MCPED0KR | WKP470KCPEF0KR | WKP101KCPDF0KR |
WKP222MCPED0KR | WKP222MCPEJGKR | WKP470MCPDF0KR | WKP152MCPEF0KR |
WKP101MCPQG0KR | WKP101MCPTG0KR | WKP101MCPERZKR | WKP332MCPTH0KR |
WKP472KCPDJ0KR | WKP152MCPERZKR | WKP222MCPQH0KR |
|
WKP472KCPYREKR | WKP472MCPEJGKR | WKP222MCPERZKR |
|
相關推薦：
Vishay威世VS-FC270SA20功率MOSFET模塊

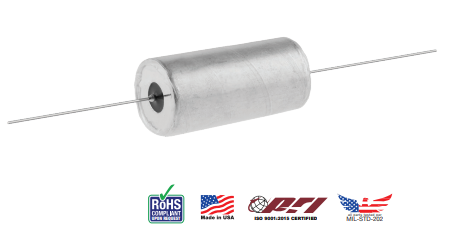

Vishay STH軍用H級濕式鉭電容器
