Renaissance Electronics隔離器/環行器無線通信應用0.234-15.5GHz
發布時間：2025-07-09 08:43:52 瀏覽：98
Renaissance Electronics Corporation 提供高性能隔離器(Isolators)和環行器(Circulators)，專為
無線通信、雷達、衛星通信等射頻(RF)系統 設計，確保信號穩定傳輸并減少干擾。
核心特點
寬頻率覆蓋：0.234 GHz – 15.5 GHz(支持Sub-6G、C波段、Ku波段等)
高隔離度：最小15 dB(多數≥20 dB)
低插入損耗：≤0.8 dB(典型0.3–0.5 dB)
大功率支持：正向功率最高170W(反向125W)
緊湊設計：最小0.25"×0.25"(6.35mm×6.35mm)
典型應用
5G基站(Sub-6GHz & 毫米波)
衛星通信(C/Ku波段)
雷達系統(高功率耐受)
微波中繼(低損耗傳輸)

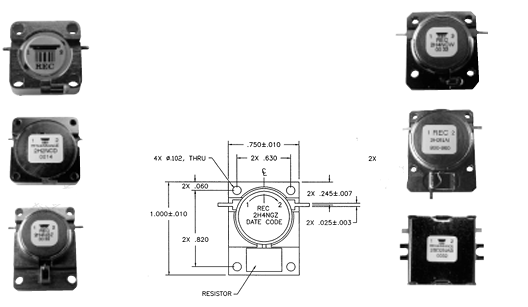

選型
FREQUENCY
GHz | ISOLATION
dB,MIN | INSERTION
LOSS dB,MAX | VSWR
MAX | POWER,WATTS | MODEL# | DIMENSIONS
IN INCHES |
| FWD | REV |
| 0.234-0.246 | 20 | 0.500 | 1.250:1 | 30 | 30 | 2SD2NAW | 1.180x 1.180x0.510 |
| 0.245-0.258 | 20 | 0.500 | 1.250:1 | 30 | 30 | 2SD2NBB | 1.180×1.180x0.510 |
| 0.258-0.270 | 20 | 0.500 | 1.250:1 | 30 | 30 | 2SD2NBC | 1.180x1.180x0.510 |
| 0.270-0.284 | 20 | 0.500 | 1.250:1 | 30 | 30 | 2SD2NBD | 1.180×1.180x0.510 |
| 0.284-0.298 | 20 | 0.500 | 1.250:1 | 30 | 30 | 2SD2NBE | 1.180×1.180x0.510 |
| 0.298-0.314 | 20 | 0.500 | 1.250:1 | 30 | 30 | 2SD2NBF | 1.180×1.180x0.510 |
| 0.307-0.323 | 20 | 0.500 | 1.250:1 | 30 | 30 | 2SD2NW | 1.180x1.180x0.510 |
| 0.320-0.330 | 20 | 0.500 | 1.250:1 | 30 | 30 | 2SD2NAZ | 1.180×1.180x0.510 |
| 0.326-0.346 | 20 | 0.500 | 1.250:1 | 30 | 30 | 2SD2NY | 1.180×1.180x0.510 |
| 0.346-0.364 | 20 | 0.500 | 1.250:1 | 30 | 30 | 2SD2NAA | 1.180×1.180x0.510 |
| 0.365-0.385 | 20 | 0.500 | 1.250:1 | 30 | 30 | 2SD2NAB | 1.180x1.180x0.510 |
| 0.380-0.400 | 20 | 0.500 | 1.250:1 | 30 | 30 | 2SD2NAY | 1.180×1.180x0.510 |
| 0.380-0.430 | 18 | 0.500 | 1.250:1 | 90 | 10 | 2SF2NG | 1.990×1.950x0.450 |
| 0.430-0.450 | 20 | 0.500 | 1.250:1 | 30 | 30 | 2SD2NAR | 1.180×1.180x0.510 |
| 0.450-0.470 | 20 | 0.500 | 1.250:1 | 30 | 30 | 2SD2NAP | 1.180x1.180x0.510 |
| 0.470-0.520 | 20 | 0.500 | 1.250:1 | 90 | 10 | 2SF2NH | 1.990x1.950x0.450 |
| 0.520-0.576 | 20 | 0.500 | 1.250:1 | 90 | 10 | 2SF2NJ | 1.990×1.950x 0.450 |
| 0.576-0.638 | 20 | 0.500 | 1.250:1 | 90 | 10 | 2SF2NK | 1.990×1.950x0.450 |
| 0.638-0.704 | 20 | 0.500 | 1.250:1 | 90 | 10 | 2SF2NM | 1.990x1.950x0.450 |
| 0.704-0.800 | 18 | 0.500 | 1.250:1 | 90 | 10 | 2SF2NN | 1.990x1.950x0.450 |
| 0.800-0.960 | 15 | 0.800 | 1.450:1 | 50 | 10 | 2H2NAI | 1.000×1.250x0.230 |
| 0.824-0.960 | 18 | 0.500 | 1.300:1 | 50 | 10 | 2H2NAP | 1.250×1.250x0.230 |
| 0.820-0.960 | 20 | 0.500 | 1.250:1 | 10 | 10 | 2H2NBK | 1.000x 1.000x0.230 |
| 0.869-0.894 | 23 | 0.400 | 1.250:1 | 65 | 65 | 2H2NCH | 1.000x 1.250x0.230 |
| 0.869-0.894 | 22 | 0.300 | 1.200:1 | 100 | 65 | 2H2NCM | 1.250×1.250x0.230 |
| 0.925-0.960 | 23 | 0.400 | 1.180:1 | 100 | 65 | 2H2NAJ | 1.000×1.250x0.230 |
| 1.030-1.090 | 20 | 0.400 | 1.250:1 | 170 | 50 | 2H2NBY | 1.000x 1.375x0.300 |
| 1.100-1.300 | 18 | 0.500 | 1.300:1 | 50 | 10 | 2H3NAJ | 1.000x1.000 x 0.300 |
| 1.280-1.430 | 18 | 0.600 | 1.300:1 | 50 | 10 | 2H3NAP | 0.750x0.750x0.300 |
| 1.375-1.535 | 20 | 0.500 | 1.250:1 | 50 | 10 | 2H3NAD | 0.750x0.750x0.300 |
| 1.400-1.600 | 18 | 0.400 | 1.300:1 | 50 | 10 | 2H3NC | 0.750x 0.750×0.300 |
| 1.625-1.660 | 20 | 0.300 | 1.200:1 | 80 | 70 | 2H4NHD | 0.750x1.000×0.300 |
| 1.600-1.800 | 20 | 0.500 | 1.250:1 | 50 | 10 | 2H4NEW | 0.750x 0.750x0.300 |
| 1.700-1.900 | 20 | 0.500 | 1.250:1 | 50 | 10 | 2H4NBG | 0.750x 0.750x0.300 |
| 1.700-1.800 | 20 | 0.500 | 1.250:1 | 50 | 10 | 2H4NAU | 0.750x0.750×0.300 |
| 1.840-1.870 | 22 | 0.300 | 1.200:1 | 125 | 70 | 2H4NGZ | 0.750x1.000x0.300 |
| 1.930-1.990 | 22 | 0.300 | 1.200:1 | 65 | 65 | 2H4NGT | 0.750x 0.825x0.220 |
| 1.800-2.000 | 20 | 0.500 | 1.250:1 | 50 | 10 | 2H4NBI | 0.750x 0.750x0.300 |
| 1.900-2.100 | 20 | 0.300 | 1.250:1 | 50 | 10 | 2H4NBT | 0.750x0.750×0.220 |
| 2.110-2.170 | 22 | 0.300 | 1.200:1 | 125 | 70 | 2H4NHA | 0.750x1.000x0.300 |
| 2.100-2.200 | 20 | 0.300 | 1.180:1 | 125 | 125 | 2H4NHC | 0.750x 1.000x0.300 |
| 2.000-2.500 | 20 | 0.500 | 1.250:1 | 50 | 10 | 2H4NFW | 0.875x 0.875x0.345 |
| 2.500-2.700 | 20 | 0.400 | 1.200:1 | 100 | 70 | 2H4NFY | 0.750x1.250x0.310 |
| 2.700-2.900 | 20 | 0.300 | 1.200:1 | 50 | 10 | 2H5NA | 0.750x0.750×0.300 |
| 2.900-3.200 | 20 | 0.500 | 1.250:1 | 50 | 10 | 2H5NE | 0.750x 0.750x0.300 |
| 3.100-3.500 | 18 | 0.600 | 1.300:1 | 50 | 10 | 2H5NAV | 0.500x 0.500x0.180 |
| 3.200-3.600 | 20 | 0.500 | 1.200:1 | 50 | 10 | 2H5NAD | 0.750×0.750×0.250 |
| 3.600-4.200 | 18 | 0.500 | 1.300:1 | 50 | 10 | 2H5NAC | 0.500x0.500×0.180 |
| 4.200-4.400 | 20 | 0.400 | 1.250:1 | 50 | 10 | 2H6NA | 0.500x 0.500x0.210 |
| 4.400-5.000 | 18 | 0.400 | 1.300:1 | 50 | 10 | 2H6NW | 0.500x 0.500x0.180 |
| 5.000-6.000 | 20 | 0.500 | 1.200:1 | 50 | 10 | 2H6NU | 0.500x 0.500×0.180 |
| 6.000-7.000 | 19 | 0.500 | 1.200:1 | 50 | 10 | 2H7NBX | 0.500x 0.500×0.180 |
| 7.000-8.500 | 20 | 0.500 | 1.200:1 | 50 | 10 | 2H7NAD | 0.500x 0.500x0.180 |
| 5.800-6.400 | 20 | 0.500 | 1.250:1 | 50 | 10 | 2H7NBG | 0.500x 0.500x0.180 |
| 6.400-7.200 | 20 | 0.500 | 1.220:1 | 50 | 10 | 2H7NBH | 0.500x 0.500x0.180 |
| 9.000-10.000 | 20 | 0.050 | 1.500:1 | 50 | 10 | 2H8NAG | 0.500x0.500×0.180 |
| 10.000-11.000 | 20 | 0.500 | 1.250:1 | 50 | 10 | 2H8NAR | 0.500x 0.500x0.180 |
| 10.950-12.750 | 21 | 0.500 | 1.250:1 | 50 | 10 | 2H8NR | 0.500x 0.500x0.180 |
| 13.750-14.500 | 20 | 0.500 | 1.250:1 | 50 | 10 | 2H9NAX | 0.500x 0.500×0.180 |
| 13.750-14.500 | 20 | 0.500 | 1.250:1 | 50 | 21 | 2H9NAV | 0.500x0.750×0.180 |
| 14.500-15.500 | 20 | 0.500 | 1.250:1 | 10 | 1 | 2H9NAY | 0.250x 0.250x0.130 |
Renaissance Electronics & Communications, LLC 是一家專注于高可靠性無源和有源組件以及子系統的設計和制造公司，其產品廣泛應用于軍事和商業領域。HXI公司(已被Renaissance收購)是一家專注于射頻和微波技術的公司，主要為國防、太空和航空市場提供廣泛的產品線，包括低噪聲放大器、功率放大器、頻率倍增器、混頻器/上變頻器、波導隔離器和環行器以及PIN開關等，頻率覆蓋從18 GHz至110 GHz。深圳市立維創展科技有限公司優勢供銷Renaissance/HXI產品，歡迎咨詢了解。
